3-Channel End Moulding (Twin Pack – Male & Female)

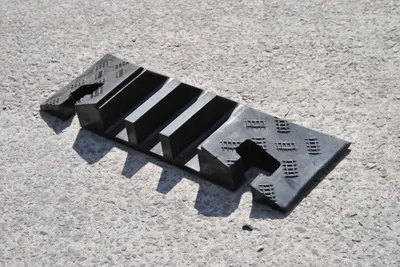

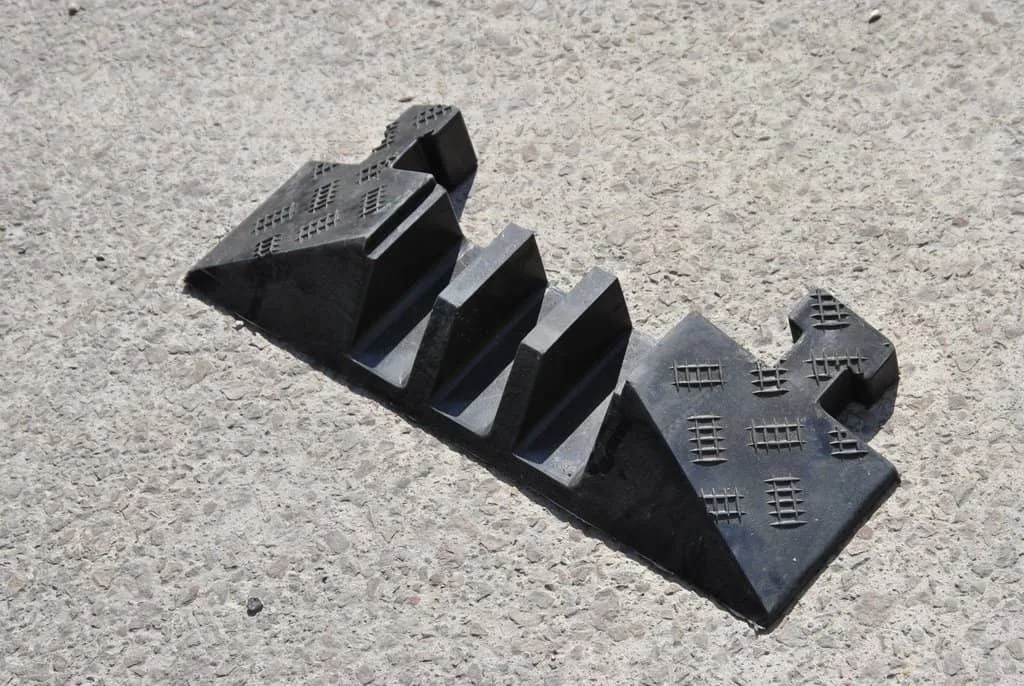

This SBR rubber end module provides a smooth ground transition at the start and finish of a three-channel lidded ramp run and is supplied as a male-and-female pair; it has no lid. The male part measures 150 x 590 x 80 mm and the female 200 x 590 x 80 mm. Of the three channels, the outer two are 70 mm wide x 50 mm deep and the inner channel 55 mm wide x 50 mm deep. Suitable for both pedestrian and vehicle traffic, it withstands axle loads up to 12 tonnes per vehicle and is intended for temporary use on firm ground.
