Type BF Vibration Damper (TYPE-BF)
Product Code: GT-01017

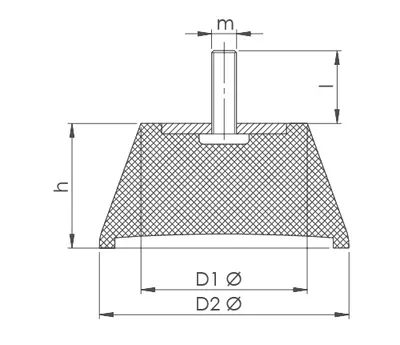

Flanged rubber-metal vibration damper. Dimension table columns: Ref Nr., D1Ø, D2Ø, h, m, l.
Technical Specifications
| RUBBER PARTS – Material | NR - SBR - CR - NBR - EPDM |
| RUBBER PARTS – Hardness | 45 - 57 - 70 Shore A |
| RUBBER PARTS – Hardness Tolerance | ± 5 Shore A |
| METAL PARTS – Material | DIN EN 10111-98 |
| METAL PARTS – Coating | DIN EN 12329-Fe // Zn // C Cr+3 Zinc Coating |
Downloads
Product Description
The TYPE-BF flanged vibration damper is a rubber-metal mount designed to isolate vibration and noise in machinery and equipment. Its two-diameter design provides secure seating and installation. The dimension table lists the D1Ø and D2Ø diameters, h height, m metric thread and l length for each reference number.
