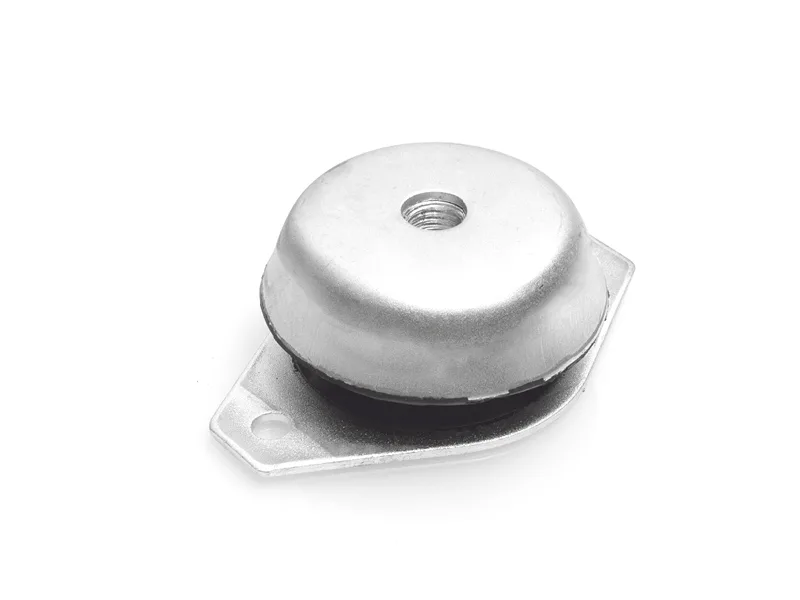

Type BS Vibration Damper (TYPE-BS)
Product Code: GT-01027
Rubber-metal vibration damper. Dimension table columns: Ref. Nr., A, DØ, m, E, h, T, Z, t, load.
Technical Specifications
| RUBBER PARTS – Material | NR - SBR - CR - EPDM |
| RUBBER PARTS – Hardness | 45 - 57 - 70 Shore A |
| RUBBER PARTS – Hardness Tolerance | ± 5 Shore A |
| METAL PARTS – Material | DIN EN 10111-98 |
| METAL PARTS – Coating | DIN EN 12329-Fe // Zn // C Cr+3 Zinc Coating |
Downloads
Product Description
The TYPE-BS vibration damper is a rubber-metal mount designed to isolate vibration and noise in machinery and equipment. Its threaded connection ensures secure installation. The dimension table lists the A, DØ diameter, m metric thread, E, h, T, Z, t dimensions and load for each reference number.
