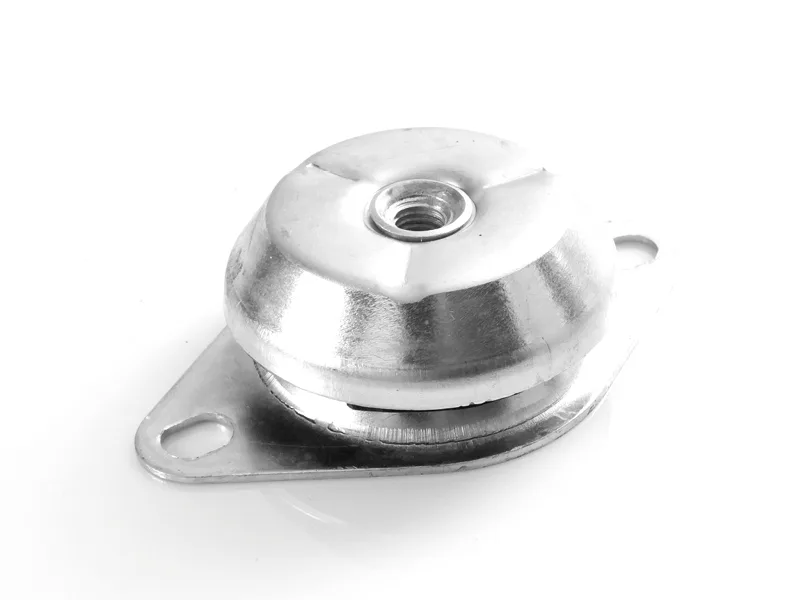

Type BW Vibration Damper (TYPE-BW)
Product Code: GT-01031
Rubber-metal vibration damper. Dimension table columns: Ref. Nr., DØ, h, M, l1, l2, L, t, dØ.
Technical Specifications
| RUBBER PARTS – Material | NR - SBR |
| RUBBER PARTS – Hardness | 45 - 57 - 70 Shore A |
| RUBBER PARTS – Hardness Tolerance | ± 5 Shore A |
| METAL PARTS – Material | DIN EN 10111-98 |
| METAL PARTS – Coating | DIN EN 12329-Fe // Zn // C Cr+3 Zinc Coating |
Downloads
Product Description
The TYPE-BW vibration damper is a rubber-metal mount designed to isolate vibration and noise in machinery and equipment. Its threaded connection ensures secure installation. The dimension table lists the DØ diameter, h height, M metric thread, l1 and l2 lengths, and the L, t and dØ values for each reference number.
