Type D Vibration Damper (TYPE-D)
Product Code: GT-01004

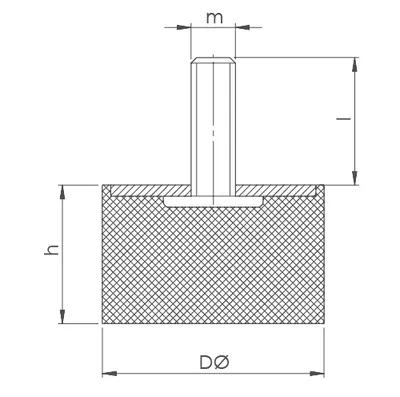

Cylindrical rubber-metal vibration damper. Dimension table columns: Ref Nr., DØ, h, m, l, compression stiffness (N/mm).
Technical Specifications
| RUBBER PARTS – Material | NR - SBR - CR - NBR - EPDM |
| RUBBER PARTS – Hardness | 45 - 57 - 70 Shore A |
| RUBBER PARTS – Hardness Tolerance | ± 5 Shore A |
| METAL PARTS – Material | DIN EN 10111-98 |
| METAL PARTS – Coating | DIN EN 12329-Fe // Zn // C Cr+3 Zinc Coating |
Downloads
Product Description
The TYPE-D cylindrical vibration damper is a rubber-metal mount designed to isolate vibration and noise in machinery and equipment. Its double-sided threaded studs allow quick and secure installation. The dimension table lists the DØ diameter, h height, m metric thread, l length and compression stiffness (N/mm) for each reference number.
