Type SF Rectangular Vibration Damper
Product Code: GT-01058
Rectangular vibration damper. Rubber: NR 45–50–55–60–70 ±5 Shore A. Coating: CR+3.
Technical Specifications

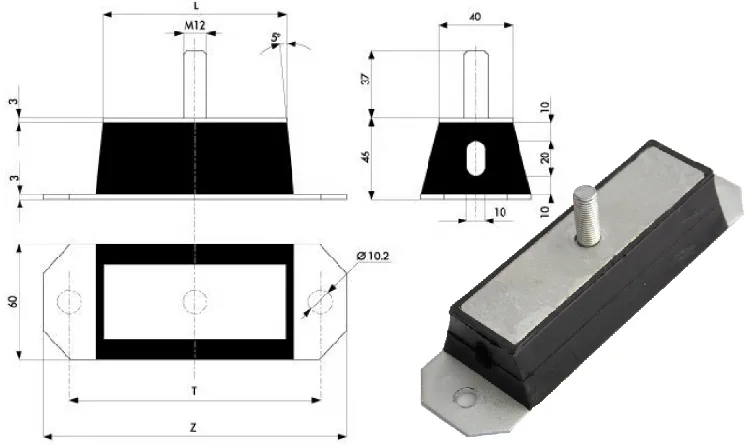

| GT115SF | Z=115, L=50, T=85, MAX KG=500 |
| GT165SF | Z=165, L=100, T=135, MAX KG=1200 |
| GT215SF | Z=215, L=150, T=185, MAX KG=1400 |
| GT265SF | Z=265, L=200, T=235, MAX KG=1600 |
Product Description
The Type SF rectangular vibration damper is a rubber-metal element designed to isolate vibration and noise in machinery and equipment. Its rectangular base provides a large contact surface and stable installation. The rubber is NR, produced in 45, 50, 55, 60 and 70 ±5 Shore A hardness grades, with a CR+3 coating. Different bolt lengths, coatings, materials and hardness grades are available on request.
