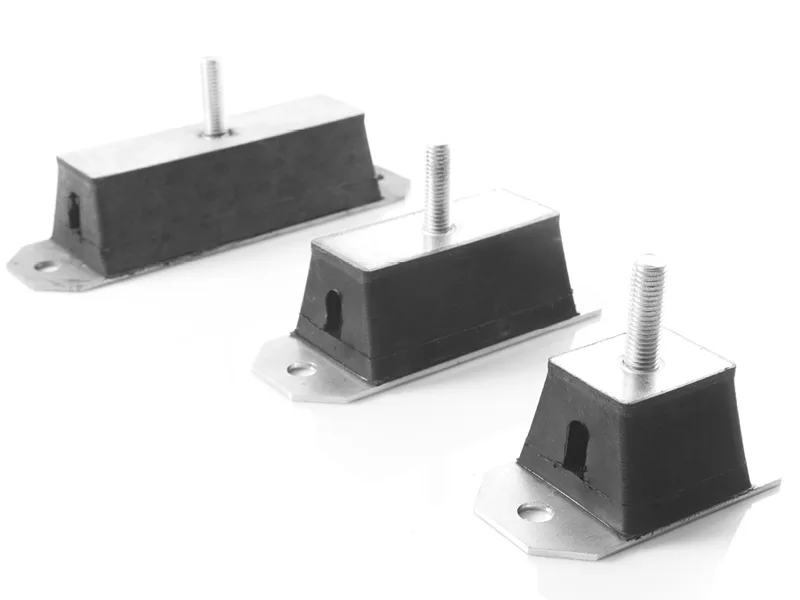

Type SF Vibration Damper (TYPE-SF)
Product Code: GT-01025
Rectangular rubber-metal vibration damper. Dimension table columns: Ref Nr., Z, L, T, M, I, h.
Technical Specifications
| RUBBER PARTS – Material | NR - SBR - CR - EPDM |
| RUBBER PARTS – Hardness | 45 - 57 - 70 Shore A |
| RUBBER PARTS – Hardness Tolerance | ± 5 Shore A |
| METAL PARTS – Material | DIN EN 10111-98 |
| METAL PARTS – Coating | DIN EN 12329-Fe // Zn // C Cr+3 Zinc Coating |
Downloads
Product Description
The TYPE-SF rectangular vibration damper is a rubber-metal mount designed to isolate vibration and noise in machinery and equipment. Its rectangular base provides a large contact surface and stable installation. The dimension table lists the Z, L, T, M, I and h values for each reference number.
