Modular Hose Ramp - Bridge Section - 2 x 170 mm hoses/cables

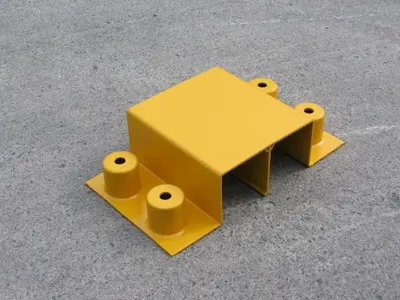

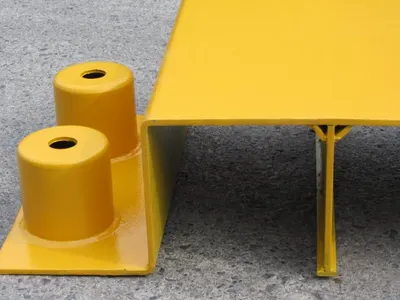

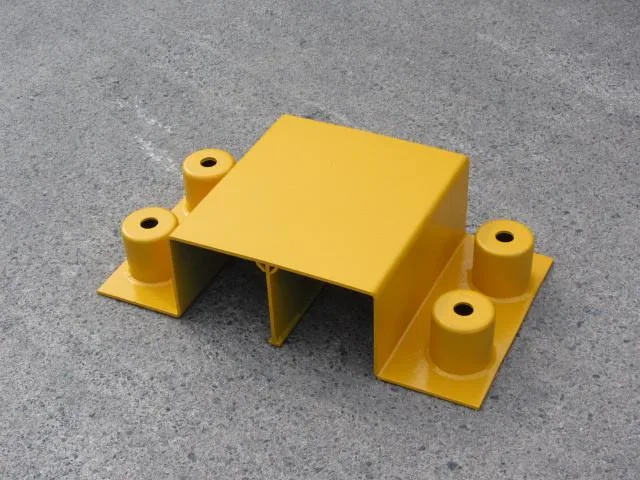

This is the central steel bridge section of the modular ramp system, designed to accommodate 2 hoses or cables up to 170 mm in diameter. Combined with the system's rubber elements, a ramp up to 3400 mm long can be built so that most cars can cross without grounding. Made from 7 mm galvanised steel with a RAL 1028 yellow powder coat, it measures 360 x 400 x 175 mm with two 170 x 170 mm channels and is rated to 12 tonnes per vehicle axle. It should not be used with fork lift trucks or vehicles with solid tyres.
