Modular Hose Ramp - Short Ramp Section
Product Code: GT-24015
SBR rubber wedge ramp of the modular system, taking the vehicle up 160 mm for 140-180 mm hoses, rated 12 t per axle.
Technical Specifications
| Dimensions (L×W×H) | 0 × 0 × 0 |
| Weight | 18 kg |
Product Description

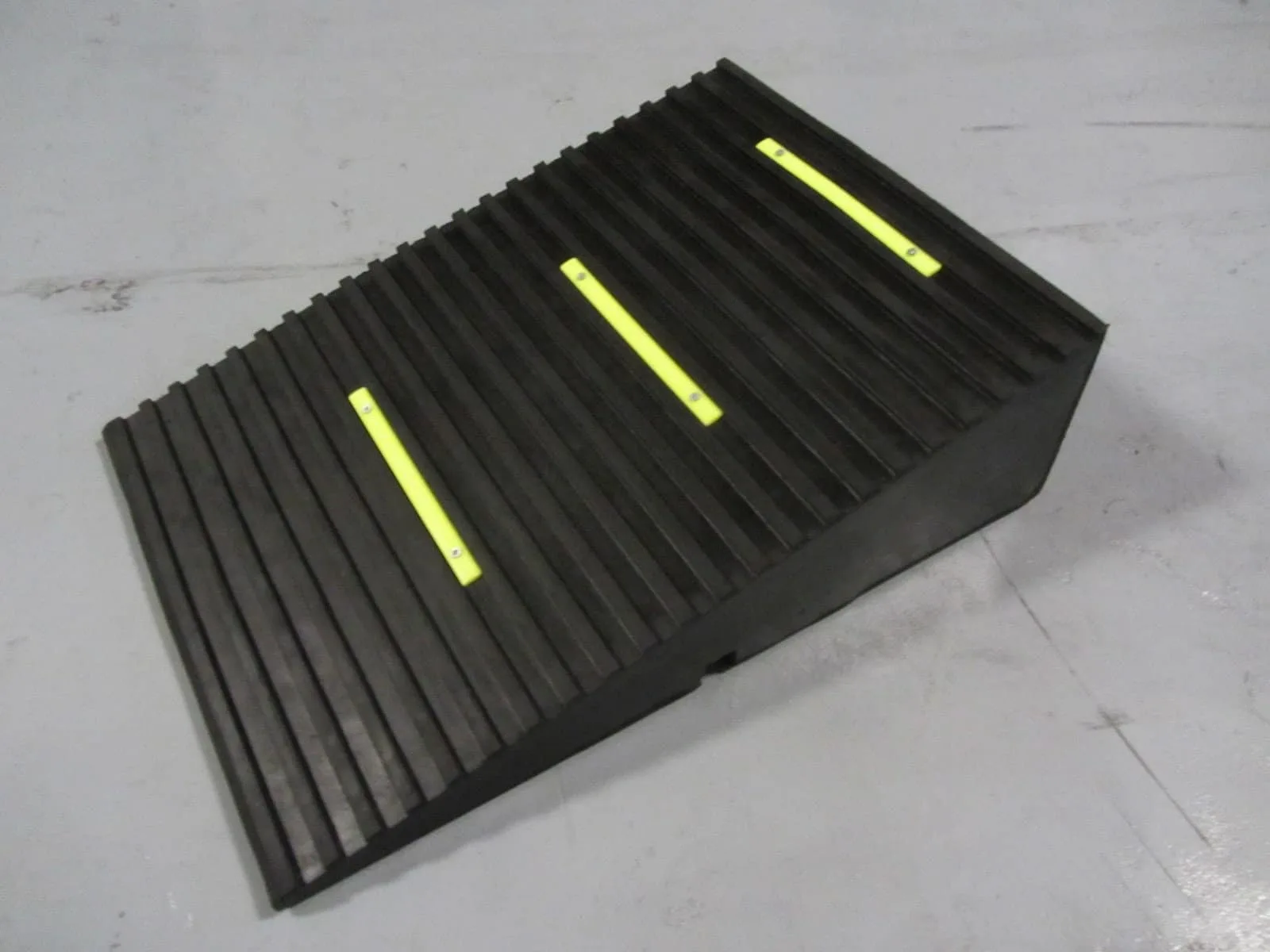

This rubber wedge section is the entry ramp of the modular ramp system and is designed to take hoses from 140 mm up to 180 mm in diameter, depending on which steel bridge section is used. The part takes the vehicle 160 mm above the ground. Used with the system's other rubber elements, a ramp up to 3400 mm long can be built so that most cars cross without grounding. Made from SBR rubber, it measures 540 x 400 x 160 mm and is rated to 12 tonnes per vehicle axle.
