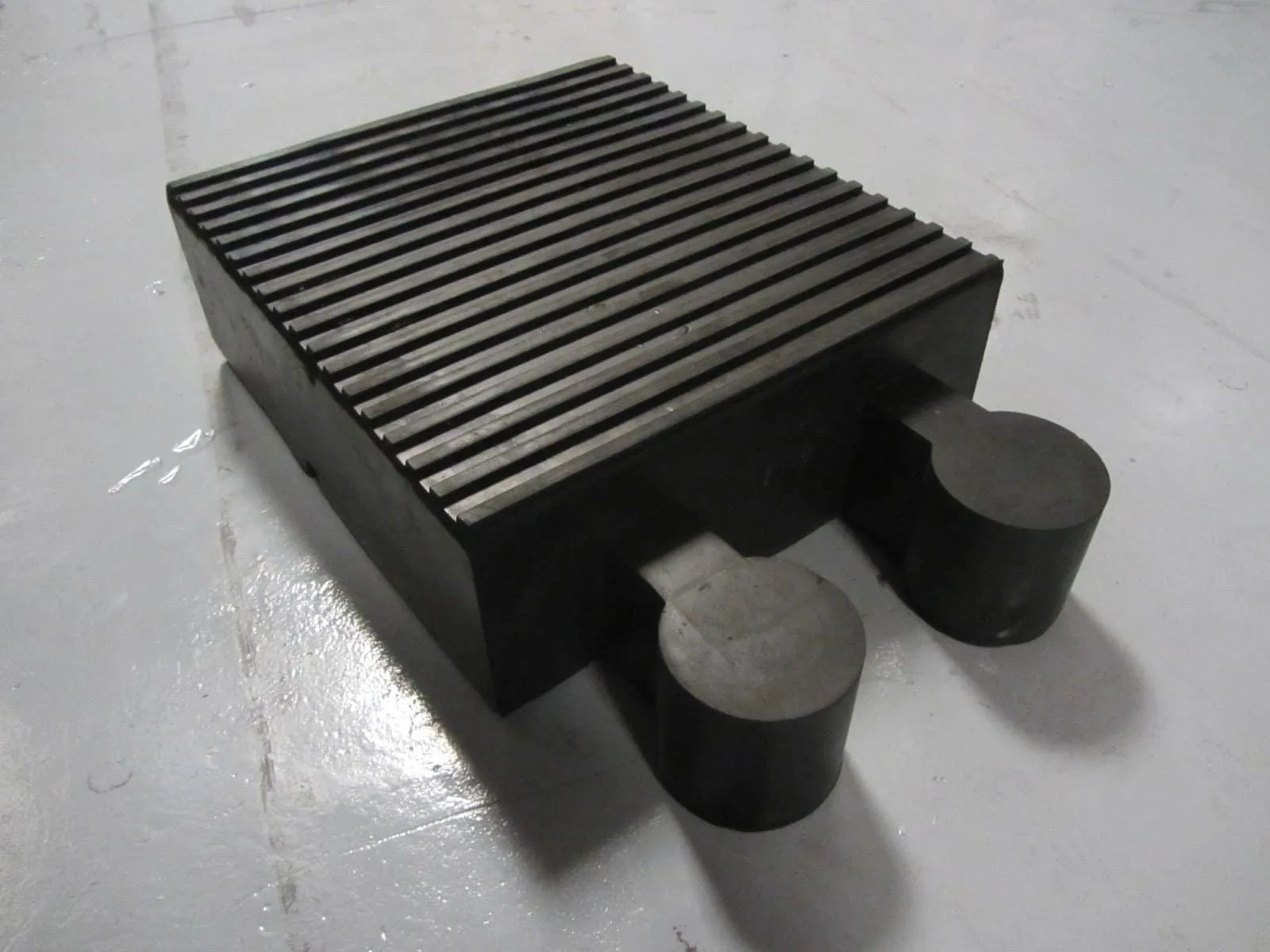

Modular Hose Ramp - Spacer Section
Product Code: GT-24014
SBR rubber spacer section of the modular system, lifting the vehicle 160 mm for 140-180 mm hoses, rated 12 t per axle.
Technical Specifications
| Dimensions (L×W×H) | 0 × 0 × 0 |
| Weight | 33 kg |
Product Description
This spacer section is part of our modular hose ramp system and is designed to take hoses from 140 mm up to 180 mm in diameter, depending on which steel bridge section is used. The part lifts the vehicle 160 mm above the ground. Used with the system's other rubber elements, a ramp up to 3400 mm long can be built so that most cars cross without grounding. Made from SBR rubber, it measures 450 x 400 x 160 mm and is rated to 12 tonnes per vehicle axle.
