Pedestrian Hose Ramp for Large-Diameter Hoses – 2080 x 995 x 235 mm
Product Code: GT-24023
Pedestrian hose ramp with aluminium bridge and GRP ramps; covers 200 mm hoses, 3-piece modular, max 200 kg.
Technical Specifications
| Dimensions (L×W×H) | 0 × 0 × 0 |
| Weight | 32 kg |
Product Description

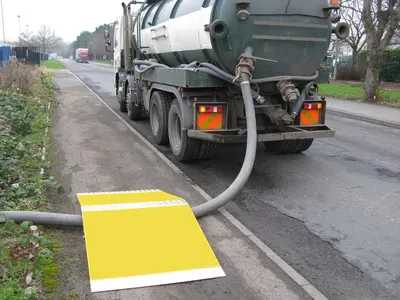

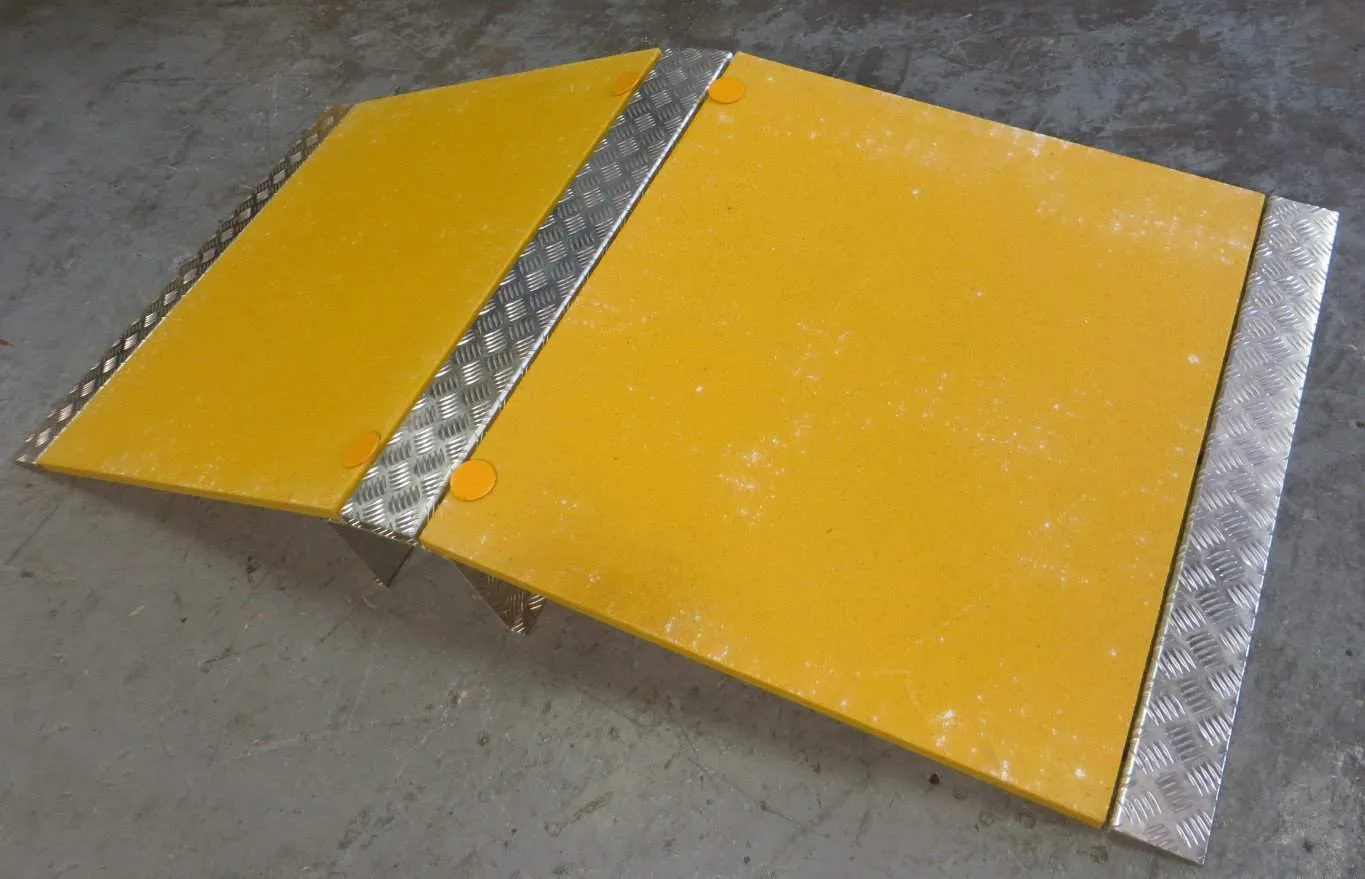

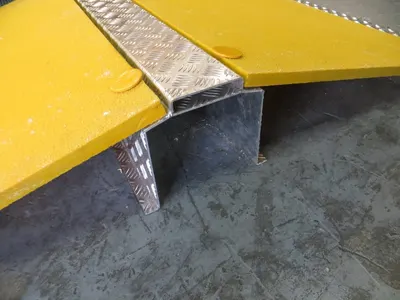

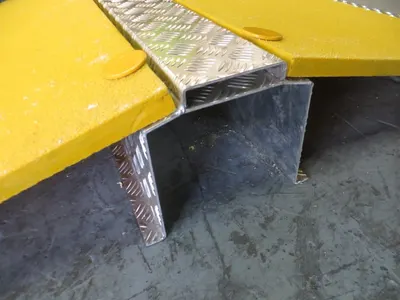

A pedestrian hose ramp for large-diameter hoses, designed specifically for slurry and tanker applications. The central bridge section is made from extruded aluminium and accepts hoses up to 200 mm in diameter (allowing for expansion of 6-inch slurry and waste hoses). The bright yellow GRP ramp sections provide a robust, lightweight and highly visible solution. The ramp consists of 3 separate modules, each weighing under 15 kg, with a total assembled weight under 35 kg, and can be quickly assembled each time it is deployed. Overall dimensions are 2080 x 995 x 235 mm; it is for pedestrian use only, with a maximum load of 200 kg.
